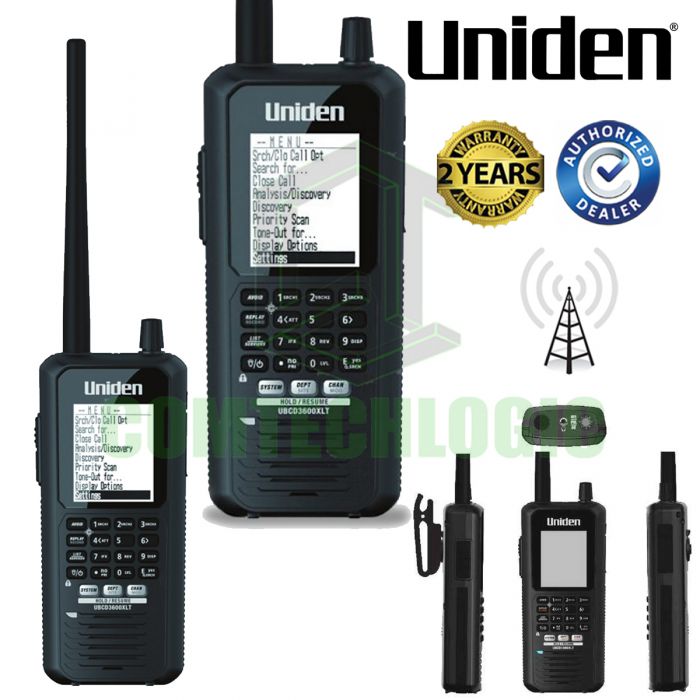

Uniden-Bearcat UBCD3600XLT-NXDN Activated Includes Free 4 GB MicroSD Card
NEW with activated NXDN
NXDN protocol is used by Kenwood and Icom in their digital radios.
25-1300MHz Analogue/Digital handheld scanner with "close call", SD card, and many new features!
Features, Functions & Specifications :-
Favorites Scan
Allows you to organize your Systems into Favorites Lists. The scanner will scan multiple Favorites Lists and Full Database at the same time.
4 GB microSD card (provided - 1 GB up to 32 GB supported)
For storing Favorites Lists, Profiles, all settings, Discovery sessions, recording sessions.
Location Based Scanning
Connect to a GPS receiver (not included) for precise system selection and continuing reselection when you travel. The scanner can automatically Avoid and Unavoid Systems and Departments based on your current location as provided by an external GPS unit.
Range Control
Lets you set how far out from your current location the scanner will search for channels in Favorites Lists. Location precision for departments and sites that allows you to define a location and range using rectangles instead just of a single circle.
Trunk Tracker V Operation
Scans APCO 25 Phase 1 and Phase 2, DMR, Motorola, EDACS, EDACS ProVoice, and LTR trunked systems, as well as conventional analogue and P25 digital channels.
Multi-Site Trunking
Lets you program the scanner to share trunked system IDs across multiple sites without duplicating IDs.
Control Channel Only Scanning
With Motorola trunking frequencies, you do not have to program voice channel frequencies.
Instant Replay
Plays back up to 240 seconds (4 minutes) of the most recent transmissions.
Audio Recording
Capture transmissions for later playback.
Custom Alerts
You can program your scanner to alert when you receive, a Channel or Unit ID, a Close Call hit, an ID is transmitted with an Emergency Alert or a Tone-out hit. For each alert in the scanner, you can select from 9 different tone patterns, 15 volume settings, 7 colours, and 2 flash patterns.
Multicolor LED Alert
The alert LED with 7 colours, Blue, Red, Magenta, Green, Cyan, Yellow, or White, can be used with your Custom Alerts.
Trunking Discovery
Monitors system traffic on a trunked radio system to find unknown IDs and automatically records audio from and logs new channels for later review and identification.
Conventional Discovery
Searches a range of frequencies to find unknown frequencies and automatically records audio from and logs new channels for later review and identification.
Scan by Service Types
Scan your channels by Service Type i.e. Fire, Police, Railroad, etc.
Search Speed
80 step/sec. (typical) in Search mode (max) except for 5 kHz steps. 250 step/sec. (typical) in Search mode (max) ? (Turbo Search) for 5 kHz steps.
Multi-Level Display and Keypad light
Makes the display and keypad easy to see in dim light with three light levels.
Temporary or Permanent Avoid
For Systems/Sites/Departments/Channels.
System/Channel Number Tagging
Number tags allow you to quickly navigate to a specific Favorites List, System, or Channel.
Start-up Configuration
You can program each of your Favorites Lists with a Startup Key (0-9) so that when you power up the scanner and press the key number, just those Favorites Lists assigned to the key will be enabled for the scan.
Close Call© RF Capture Technology
Lets you set the scanner so it detects and provides information about nearby radio transmissions. Close Call Do-not-Disturb checks for Close Call activity in between channel reception so active channels are not interrupted.
Broadcast Screen
Allows the scanner to ignore hits in search and Close Call modes. You can also program up to 10 custom frequency ranges that the scanner will ignore.
Fire Tone-Out Standby/Tone Search
Lets you set the scanner to alert you if a two-tone sequential page is transmitted. You can set up to 32 Tone-Outs. The scanner will also search and display unknown tones.
PC Programming
Use the Sentinel software to manage your scanners Profiles, Favorites Lists, and firmware updates.
Analogue and Digital AGC
Helps automatically balance the volume level between different radio systems.
Priority/Priority w/DND Scan
Priority channels let you keep track of activity on your most important channels while monitoring other channels for transmissions.
Priority ID Scan
Allows you to set priority to talk group IDs.
Intermediate Frequency Exchange
Changes the IF used for a selected channel/frequency to help avoid image and other mixer-product interference on a frequency.
Individual Channel Volume Offset
Allows you to adjust the volume offset for each channel.
Configurable Band Defaults
Allows you to set the step (5, 6.25, 7.5, 8.33, 10, 12.5,15, 20, 25, 50 or 100 kHz) and modulation (AM, FM, NFM, WFM, or FMB) for 31 different bands.
Adjustable Scan/Search Delay/Resume
Set a delay up to 30 seconds or a forced resume up to 10 seconds for each channel or search.
Data Naming
Allows you to name each Favorites List, System, Site, Department, Channel, ID, Location and Custom Search, using up to 64 characters.
Duplicate Input Alert
Alerts you if you try to enter a duplicate name or frequency already stored in the scanner.
100 Quick Keys
You can scan Favorites Lists, Systems, and Departments by assigning them to quick keys.
Search Avoids
You can temporarily Avoid up to 250 frequencies and permanently
Avoid up to 250 frequencies in any Search mode or Close Call mode.
10 Custom Searches
Lets you program up to 10 custom search ranges.
Search with Scan Operation
Lets you include Custom Search ranges during scan operation.
3 Search Keys
You can assign 3 of the number keys to start a Custom Search, Tone-Out Search, or Close Call Search.
Quick Search
Lets you enter a frequency and start searching.
Built-in Battery Charger
Allows you to charge the batteries in the scanner.
Box contents:-
1 Pc of scanner
1 Pc of USB connection cable
3 Pcs of AA NiMH rechargeable batteries
1 Pc of microSD card (installed)
1 Pc of a swivel belt clip (attached)
1 Pc of the SMA-BNC antenna adaptor
1 Pc of a rubber antenna
1 Pc of AC mains adaptor
